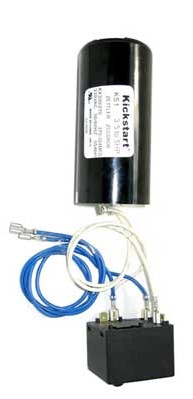

Kickstart® by Zettler Controls

Kickstart® Hard Starts are the only pre-assembled, 2-wire, easy-to-install starting devices that utilize the superior sensing capability of a potential relay in combination with a start capacitor. These devices work on all 1 - 5 HP single-phase 208V, 230V, 265V air conditioning, heat pump and refrigeration compressors - reciprocating, scroll and rotary.

Kickstart® Hard Start Features

• Covering applications from 1 to 5 ton units

• For Single Phase 208V,230V,and 265V HVAC/R Applications (1-5 HP)

• Component rated life expectancy of 50k cycles

• Instant Restarts

• UL/CSA and CE recognized

• 2 Wire non-polarized system

• OEM versions available on request


PDF-datasheet | Inquire
