For Immediate Release
11/1/2010

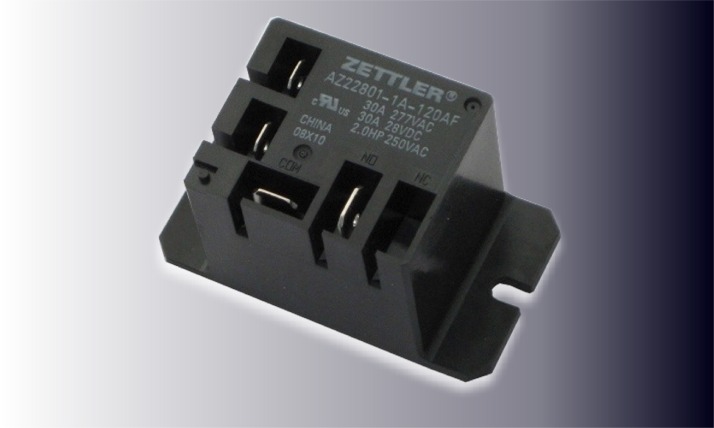

Zettler Control's AZ22801 Panel Mount Relay Holds Highest Ratings


Aliso Viejo, Calif., November 1, 2010 - Zettler Controls, Inc.'s AZ22801 series panel mount relays offer the highest UL and CUR ratings available (for this relay class) at a very competitive price. The higher load ratings and longer life give our customers the ability to build end products that last much longer than their competition.

"The AZ22801 panel mount relays offers our customers the highest load ratings available and up to 250k cycles on standard load ratings vs. the typical industry standard of only 100k," said Ryan Magner, General Manager, Zettler Controls, Inc.

AZ22801 relay has the following UL ratings:

  • 40A at 240VAC resistive load on the normally open (NO) contacts
  • 30A at 277VAC general purpose load for normally open (NO) contacts
  • 20A at 240VAC resistive load at 250k cycles
  • 25A at 277VAC resistive load at 100k cycles

Built in Zettler Control's state-of-the-art facility, the AZ22801 series relays are available with Form A, B and C, AC or DC coils. The customer also has a choice of unsealed or sealed versions, which can be paired with a standard Class B insulation or optional Class F insulation. Pricing for the AZ22801 series relays starts at $1.34 each for 1,000 pieces and samples are available upon request. Applications include home and industrial appliances, ovens, heating and ventilation systems, pool and spa controls, lamps, motors and alarms. To learn more, please visit www.zettlercontrols.com .

Online data sheet

About Zettler Controls, Inc.
Headquartered in Aliso Viejo, Calif., Zettler Controls, Inc. brings the same commitment to quality and innovation to the HVAC/R market that the Zettler name has embodied for over 100 years. Offering relays, transformers, contactors, heat sequencers and more, Zettler Controls' products are used by the HVAC/R industry for both residential and commercial applications. Zettler Controls' unique combination of 100 percent quality testing, first-class sales and technical support, cost-effective product design and outstanding product availability offer a highly dependable and responsive resource for all your HVAC/R component needs. For more information, please visit www.zettlercontrols.com.

PRODUCT PROFILE

Product AZ22801 series
Part Description Miniature Power Relay
Features/Benefits 30 Amp contact rating
Panel Mount
1 Form A, B or C contacts
AC and DC coils available
Applications Home and industrial
appliances, ovens, heating
and ventilation systems,
pool and spa controls,
lamps, motors and alarms,
HVAC
Availability Sample quantity available
Production 8-10 weeks
Price Contact sales associate
Cross Reference:

Hasco: HAT903
Song Chuan: 832A W
Tyco: T9AP


For application and product information contact:

Ryan Magner
General Manager
Zettler Controls, Inc.,
75 Columbia, Aliso Viejo, CA 92656
Phone: (949) 360-5840
Fax: (949) 360-5839
Web Site: http://www.zettlercontrols.com
Email: sales@zettlercontrols.com

Online data sheet
